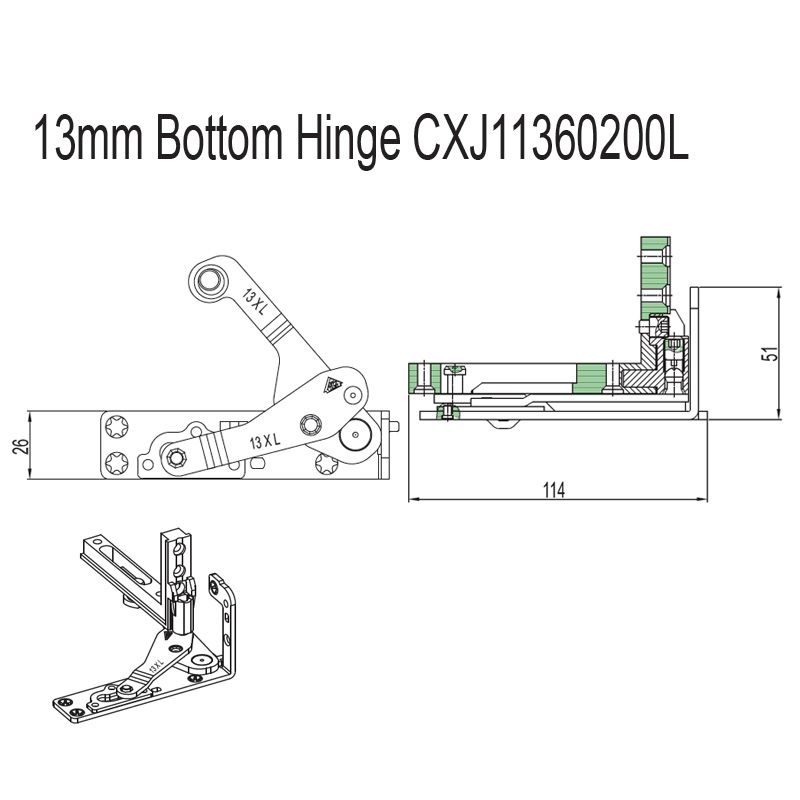

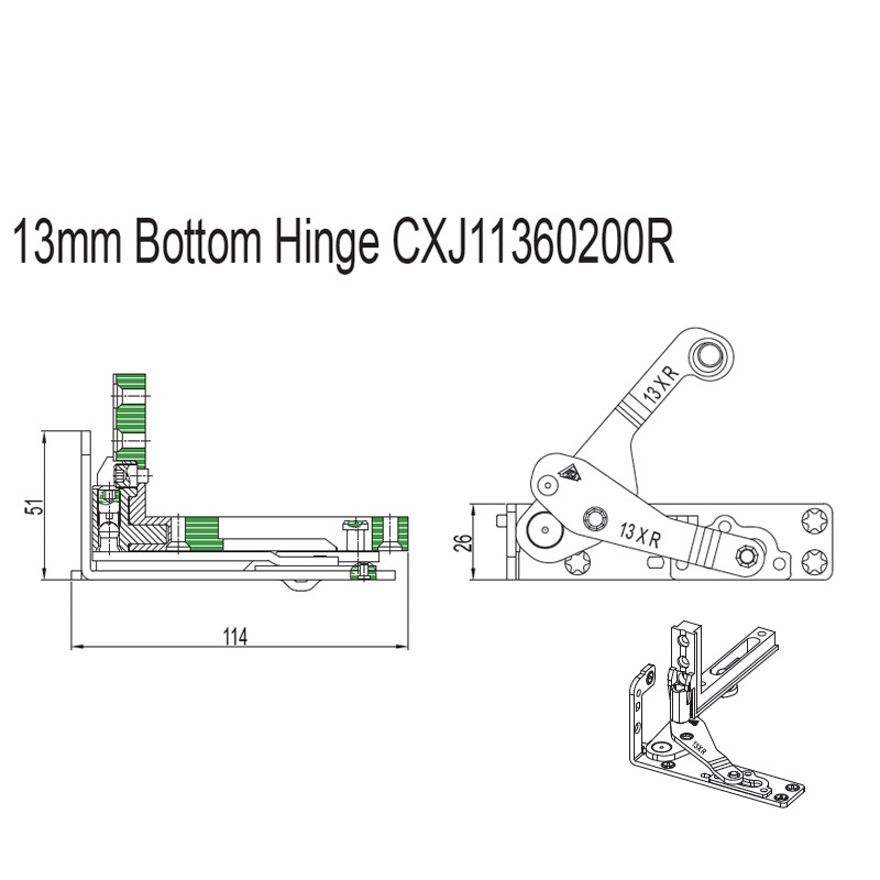

Concealed Bottom Hinge CXJ11360200L/R

Used in the casement window.

Material: Carbon Steel with plastic cover;

Surface Treatment: Zinc Plating;

Window Axis: 13mm;

Loading Capacity: 60kgs per set;

Life Time: 25 000 times;

Salt Spray Testing: 240+ hours without red rusting.
