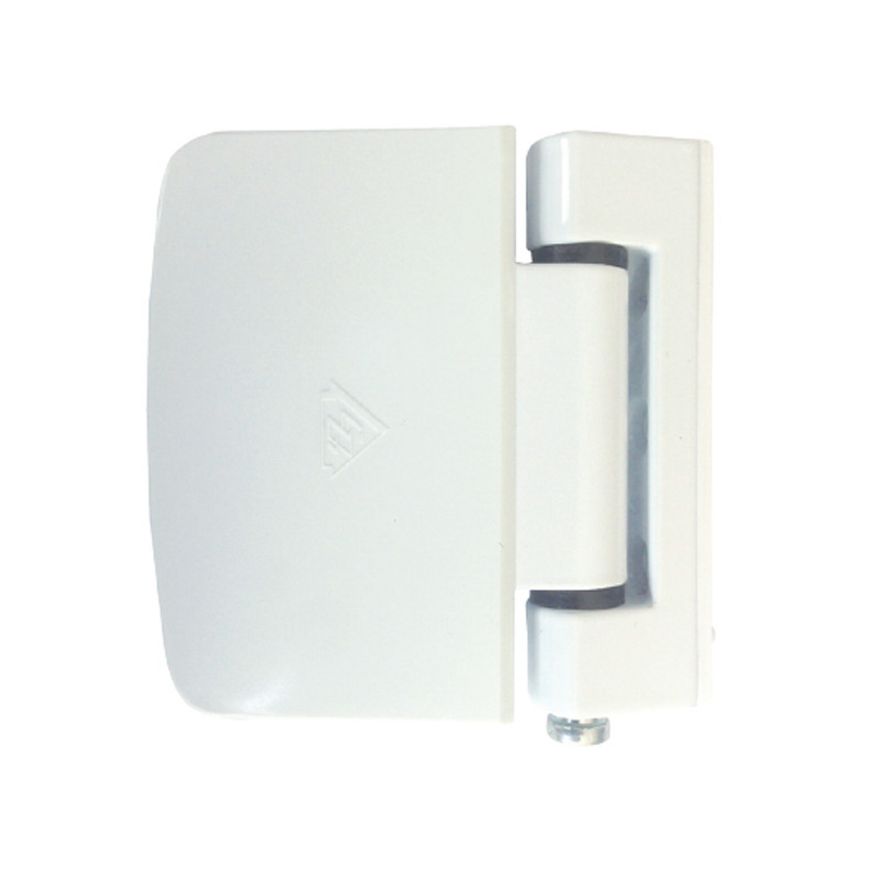

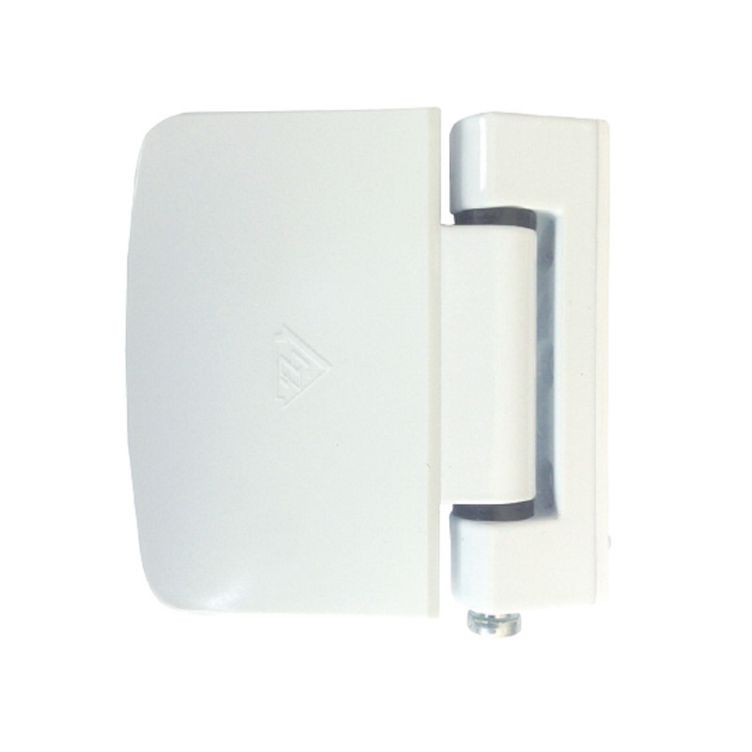

Window Hinge SCJ10032300

Used in casement window.

Material: Zinc alloy seat, steel sash part with plastic cover;

Surface Treatment: Powder coating;

Color Options: White/Black/Brown;

Loading Capacity: 60 kgs/set

Life Time: 25 000 times.

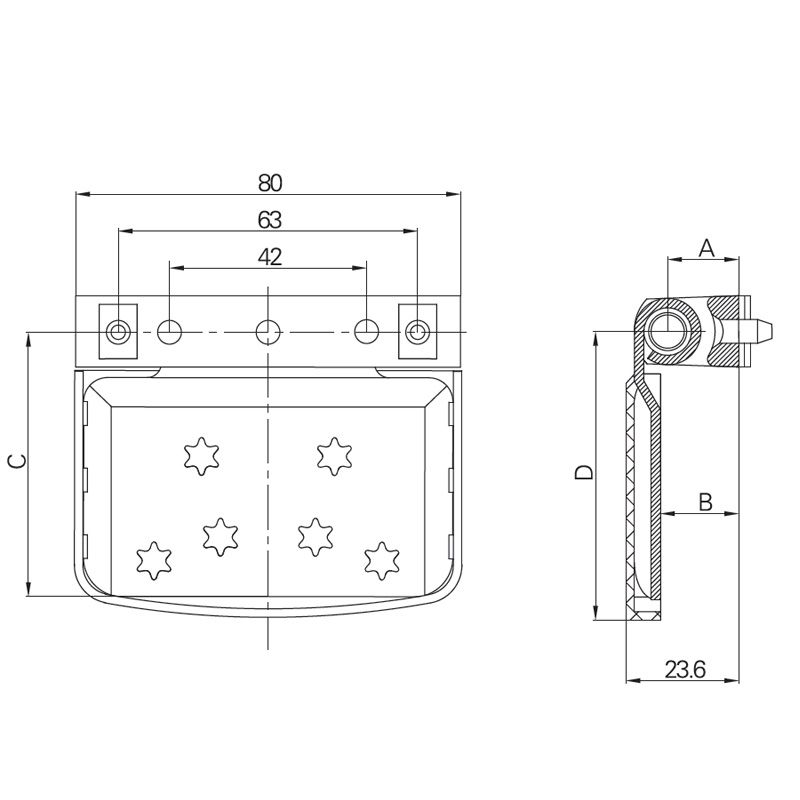

Item NO.	A	B	C	D	Spec.
SCJ10032300	15	18.5	65.5	69.8	8 Holes
SCJ10032400	15	16.5	65.5	69.8	8 Holes
SCJ10033200	15	16.5	61	65.3	6 Holes
